Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: T
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden case
Delivery Time: 5~20 days as per order qty
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Standard: |
ANSI, IEC584 |
Application: |
Thermocouple Sensor, MI Cable |
Tolerance: |
IEC 60584 Class 1 |
Diameter: |
Customized |
Delivery Time: |
5~10 Days After Getting The Payment |
Item: |
0.404mm TN Constantan Thermocouple Alloy Wire For Thermocouple Cable |
Standard: |
ANSI, IEC584 |
Application: |
Thermocouple Sensor, MI Cable |
Tolerance: |
IEC 60584 Class 1 |
Diameter: |
Customized |
Delivery Time: |
5~10 Days After Getting The Payment |
Item: |
0.404mm TN Constantan Thermocouple Alloy Wire For Thermocouple Cable |

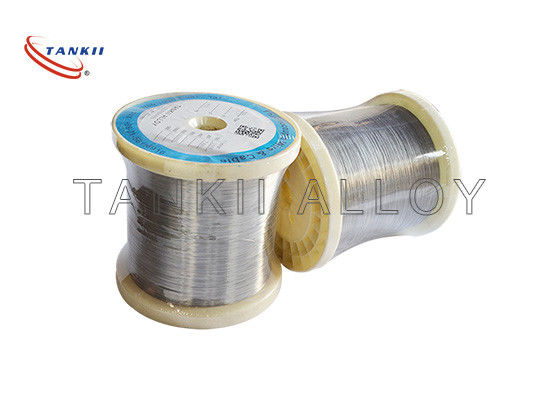

0.404mm TN Constantan Thermocouple Alloy Wire For Thermocouple Cable
Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
0.404mm TN Constance Thermocouple Alloy Wire For Thermocouple Cable
Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Tankii products conform to the standards of IEC584 -1 and 2.
Thermocouple type and index |
Measurement Range ℃ |
|
Type |
Index |
|
|
B | 600~1700 |
|
R | 0~1600 |
|
S | 0~1600 |
|
K | -200~1300 |
|
E | -200~900 |
|
J | -40~750 |
|
T | -200~350 |
|
N | -200~1300 |
0.404mm TN ConstantanThermocouple Alloy Wire For Thermocouple Cable
The allowable grade and Tolerance are obtained at 0℃
Thermocouple |
Grade |
Temperature range |
Allowable Tolerance /℃ |
Type B | Ⅱ | 600~1700 | ±0.25% t |
Ⅲ | 600~800 | ±4 | |
800~1700 | ±0.5%t | ||
Type R(S) | Ⅰ | 0~1100 | ±1 |
1100~1600 | ±[1+(t-1100) ×0.3%] | ||
Ⅱ | 0~600 | ±1.5 | |
600~1600 | ±0.25% t | ||
Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
Ⅱ | -40~750 | ±2.5℃ or ±0.75%t | |
Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
Ⅱ | -40~350 | ±1.0℃ or ±0.75%t | |
Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
Product packing details:
0.404mm TN Constantan Thermocouple Alloy Wire For Thermocouple Cable
0.404mm TN Constantan Thermocouple Alloy Wire For Thermocouple Cable
