Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr8020/2.4869
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces |
Packing: |
On Spool, In Carton Case, Wooden Case |
MOQ: |
10kg |
Application: |
Precision Resistor, Heating |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
10--20 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |
Item: |
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces |
Packing: |
On Spool, In Carton Case, Wooden Case |
MOQ: |
10kg |
Application: |
Precision Resistor, Heating |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
10--20 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
About NiCr8020:
Chemical Composition: Nickel 80%, Chrome 20%
Electrical Resistivity: 1.09 ohm mm2/m
Max working temperature: 1200 C
Condition: Bright, Annealed, Soft
NiCr A common names: nicr8020, ni80cr20, N8, Tophet A, 2.4869
Resistance wire NiCr A / Nikrothal80 Stock size: 0.08mm
Nichrome A wire is a type of resistance wire that is composed of nickel, chromium, and sometimes iron.
It is commonly used in heating elements, such as in electric furnaces, to generate heat when an electric current passes through it.
Nichrome A wire has a high melting point and excellent resistance to oxidation, making it suitable for high-temperature applications.
It is also known for its stable electrical resistance over a wide temperature range.
Tankii Resistance wire is wire intended for making electrical resistors.
It is better if the alloy used has a high resistivity, since a shorter wire can then be used.
In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density (g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces

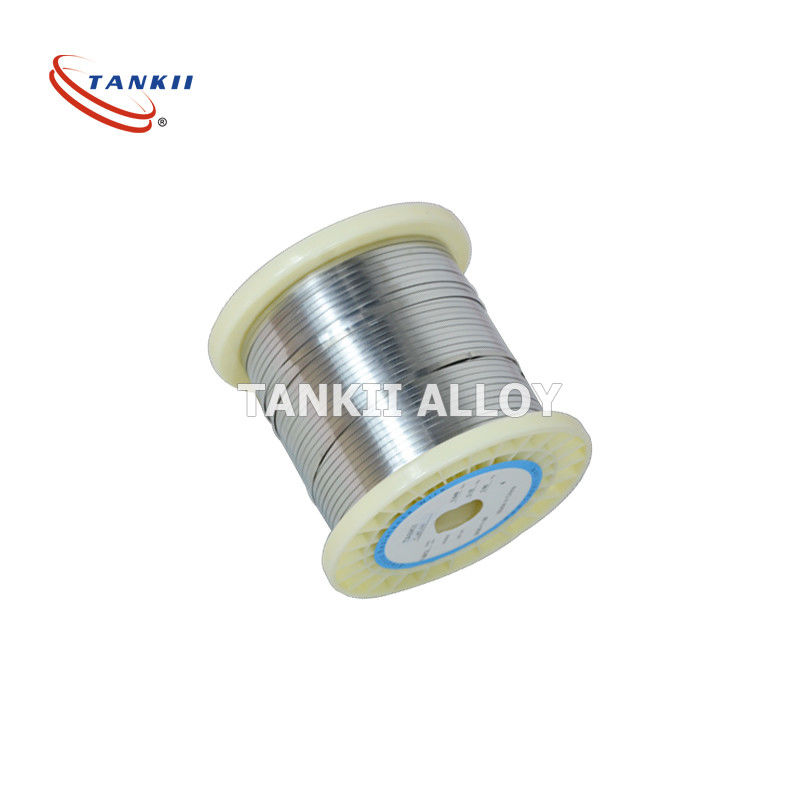

Resistance flat wire pictures:
1200 Degrees High Temperature Ribbon Wire Chromel A/ Nichrome V For Electric Furnaces
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on NiChrome products.
